Hydraulic CNG Intensifires

• Hyd. Working Max. Pressure - 250 Bar
• Hyd. Static Test Pressure - 375 Bar
• Operating Speed - 0.6 m/sec
• Max Allowable Speed for Seals - 4 m/sec
• Drive Motor - 22 / 37 kW (Flame Proof)
• Flow Rate - 450 / 650 SCMH
• Max Operating Temperature (Hyd. System) - 80ºC
• Max Operating Temperature (Seals) - 150ºC
• Cooling Method - Air Cooling
• Priority Panel - 3 Lines (as per customer requirement)
• Reliability - 2000 Working Hours
• Mounting - Horizontal Mounting

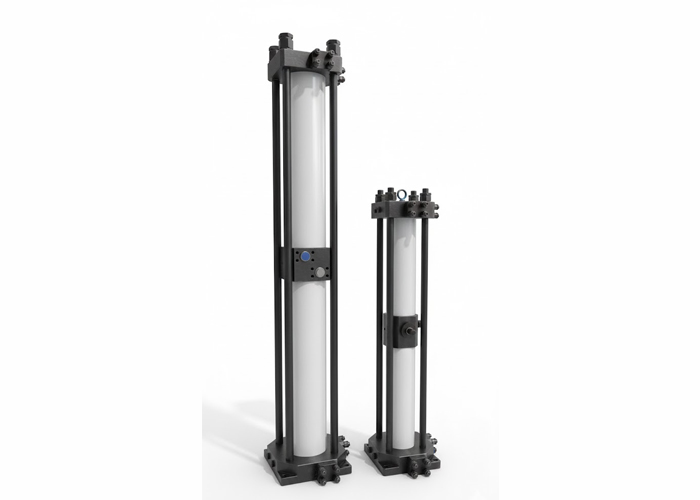

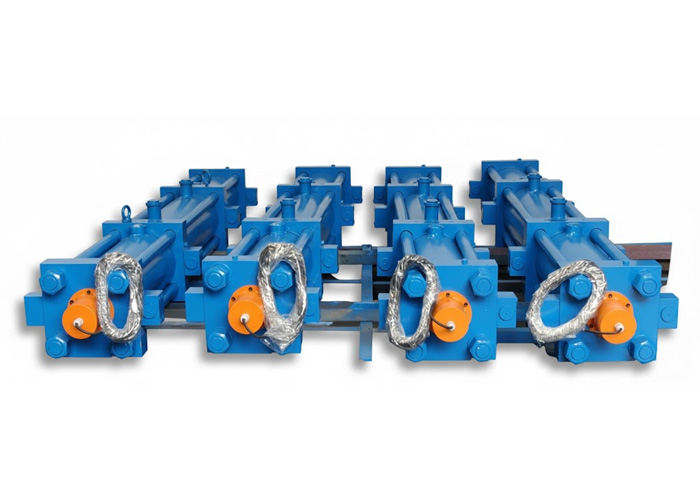

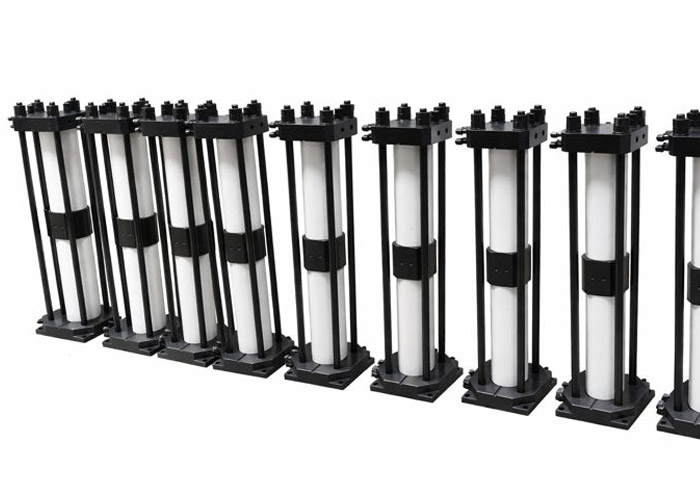

CNG-HYDRAULIC OPERATED BOOSTER ASSEMBLY with built in LVDT & proportional controls to have flow and pressure controls of CNG.

It is used as a CNG Gas Intensifier, which compresses the CNG Gas of low pressure to high pressure to fill Vehicle Gas tank.

• Suction Pressure: 180 Bar
• Operating Pressure: 250 Bar
• Drive-Motor: 22 | 37 kW (Flame Proof)
• Flow Rate: 450 | 650 SCMH
• Nº Cylinder / Nº Stages: 2 / 2
• Seals: Trelleborg Seal’s
• Cooling Method: Air Cooling
• Priority Panel: 3 Lines (as per customer requirement)
• Weight: 625 Kg
• Reliability: 2000 Working Hours
• Mounting: Vertical Mounting

• Hyd. Working Max. Pressure: 250 Bar
• Hyd. Static Test Pressure: 375 Bar
• Operating Speed: 0.6 m/sec
• Max Allowable Speed for the Seals: 4 m/sec
• Drive Motor: 22 / 37 kW (Flame Proof)
• Flow Rate: 450 / 650 SCMH
• Max Operating Temperature for Hyd. System: 80ºC
• Max Operating Temperature for Seals: 150ºC
• Cooling Method: Air Cooling
• Priority Panel: 3 Lines (as per customer requirement)
• Reliability: 2000 Working Hours
• Mounting: Horizontal Mounting
